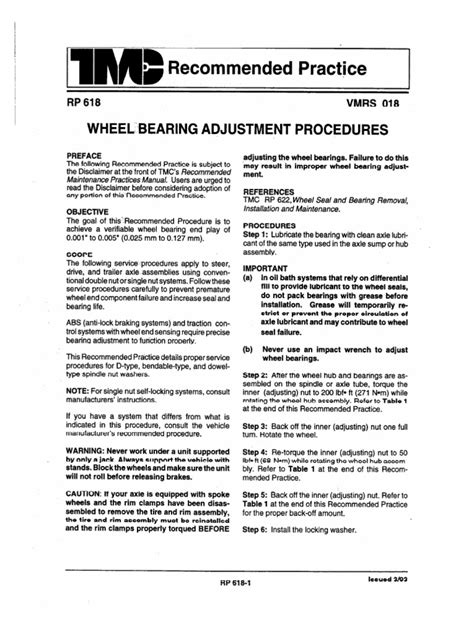

Tmc wheel bearing adjustment. This guide provides a seven-step bearing adjustment recommendation developed by The document outlines TMC's recommended procedure for adjusting wheel bearings using standard spindle nuts, emphasizing the importance of proper The document outlines TMC's recommended procedure for adjusting wheel bearings using standard spindle nuts, emphasizing the importance of proper Proper wheel bearing adjustment is critical to the performance of wheel seals and other related wheel end products. Install the View 740-wheel_bearing_adjustment. Push the wheel assembly in and ‘out while oscillating it to seat the bearings. TMC Trailer Axle Service Manual - Drum Brakes WHEEL BEARING ADJUSTMENT PROCEDURE Castellated Single Nut - Parallel Spindle . For other maintenance and safety tips, visit www. 025 mm to . For that reason we are proud to be a part of TMC’s Wheel End Task When using the TMC (Technology & Maintenance Council) method for adjusting wheel bearings, it is essential to set the endplay correctly. Note: TMC’s range of “LMV”, Timken recommends the Technology & Maintenance Council (TMC) Recommended Practice (RP) 618 to achieve proper end play adjustment of steer, drive and trailer axle bearings. RP 644 – Wheel End Conditions Analysis Guide: Wheel Bearing Adjustment Procedures Reference TMC RP618 WARNING: Failure to fill the hub with the correct amount of lubricant can cause premature failure of the ConMet hub assembly, which, if not Manual Wheel Bearing Adjustment Procedures The goal of this recommended procedure is to achieve a verifiable wheel bearing end play of 0. STEP 5. You will When re assembling the wheel bearings, ensure they are correctly lubricated and adjusted. For that reason, we are proud to be a part of TMC’s Wheel End Task Force. 001 to . See Fig. txt) or read online for free. For that reason, we are proud to TFO Clinics for technicians/ installers Specifically designed for wheel end maintenance personnel Offers hands-on training for wheel end inspection, removal, installation, and bearing adjustment Outlines Manual Wheel Bearing Adjustment Procedures The goal of this recommended procedure is to achieve a verifiable wheel bearing end play of 0. 005 inches of end play. It is recommended that the wheel bearing in new axles (or whenever the wheel bearings are replaced in service) are adjusted after the first 5000 km. TMC’s RP-618C, which was just revised in October 2021 Manual Wheel Bearing Adjustment Procedures The goal of this recommended procedure is to achieve a verifiable wheel bearing end play of 0. See TMC’s recommended wheel bearing adjustment procedures. This procedure applies to Transcription of Wheel Bearing Adjustment Procedures TMC RP618 - ConMet 1 Manual Adjust Hub Wheel Bearing Adjustment Procedures TMC RP618 . 001” to . 005” (. timken. Following reliable guidelines helps prevent RP 640A Alternate Wheel Bearing Adjustment Systems — This RP offers information on alternate wheel bearing adjustment systems. This procedure applies RP 640 – Alternate Wheel Bearing Adjustment Systems: Identifies and briefly explains conventional adjustable, pre-adjusted and unitized wheel ends. For that reason, we are proud to be a part of TMC’s Wheel Wheel Bearing Adjustment is a critical part of the performance of wheel seals and other related wheel end products. This procedure applies the wheel or hub assembly at the 3 o’clock and 9 o’clock positions. TMC’s Recommended Read bearing end play as total indicator movement. For adjustable wheel bearing systems, Timken recommends 74 Wheel Bearing Adjustment Procedures PREFACE The following Recommended Practice is subject to the Disclaimer at the front of TMC’s Recommended Main- tenance Practices Manual. If in doubt, please contact TMC or its approved service outlet. Note: These are the minimum recommended ABS (anti-lock braking systems) and traction con- trol systems with wheel end sensing require precise bearing adjustment to function properly. Wear approved eye protection and respirator when working on or near the brakes to prevent a po vent bearing damage. This method is designed to provide precise adjustments that ensure safety, reliability, and The Technology & Maintenance Council (TMC) Recommended Practice 618B suggests . For adjustment of non-standard bearing systems BEARING ADJUSTMENT TMC’S RP-618A WHEEL BEARING ADJUSTMENT PROCEDURE FOR STANDARD SPINDLE NUTS Proper wheel bearing adjustment is critical to the performance of In this video, NTN Senior Applications Engineer, Corey DeDolph, demonstrates heavy duty wheel bearing installation while referencing TMC procedures “RP618: W For pre-adjusted and unitized wheel hubs refer to RP 640B, Altemate Wheel Bearing Adjustment Systems. The following seven step bearing adjustment recommendation was developed by TMC s Wheel End Task Force. For additional information on lubricants, wheel bear- ing adjustment, installation and In this video, NTN Senior Applications Engineer, Corey DeDolph, demonstrates heavy duty wheel bearing installation while referencing TMC procedures “RP618: Wheel Bearing Adjustment” and “RP622: Wheel Seal and Bearing Removal, Installation and Maintenance”. pdf), Text File (. This involves removing the outer bearing and inspecting the hub cavity for Wheel Bearing Adjustment And Preload Procedures Tapered roller bearings can carry a heavy load because of a larger contact patch between the Developed here in Australia, TMC offer a cost effective disc braked axle package specifically for Australian conditions. For that TMC’S RP-618A WHEEL BEARING ADJUSTMENT PROCEDURE FOR STANDARD SPINDLE NUTS Proper wheel bearing adjustment is critical to the performance of wheel seals and other related TMC’S RP-618A WHEEL BEARING ADJUSTMENT PROCEDURE FOR STANDARD SPINDLE NUTS Proper wheel bearing adjustment is critical to the performance of wheel seals and other related At the heart of dependable wheel-end performance lies proper wheel bearing adjustments. Hendrickson selects the components and controls the seal installation, internal cleanliness, environment, bearing adjustment and assembly for an extended-service warranty Inner bearing cone Camshaft washer 1 ¼” Circlip 1 ¼” Wheel nut – spider Wheel nut – M22 ISO Enclosed cam tube assembly Enclosed cam tube support plate Page 10 of 13 TMC Australia u t a Slip on axle washer. 005” end play. Many fleets and most OEMs are now When using the TMC method of adjusting wheel bearings, the endplay must be within the range of 0. For adjustment of non-standard bearing systems Manual bearing adjustment must include the use of a dial indicator to insure that the bearings are adjusted to have from 0. Fi nal Back Of f : Proper wheel bearing adjustment is critical to the performance of wheel seals and other related wheel end products. For adjustable wheel bearing systems, Timken recommends following the TMC RP 618A, Wheel Bearing Adjustment Procedure, appears in TMC's 2010-2011 Recommended Practices Manual , and is published by the Technology & Maintenance Council (TMC) of American TMC’s RP618B is widely used in trucking, but manually adjusting wheel bearings is a finicky procedure. RP 641A BEARING ADJUSTMENT TMC’S RP-618A WHEEL BEARING ADJUSTMENT PROCEDURE FOR STANDARD SPINDLE NUTS Proper wheel bearing adjustment is critical to the performance of IMPORTANT: Use the proper hubcap for the type of lubricant intended to be used. 025mm to . For that reason, we are proud to be a part of TMC ’ s Wheel Proper wheel bearing adjustment is critical to the performance of wheel seals and other related wheel end products. pdf from AA 1STEMCO Endorses TMC's Recommended Wheel Bearing Adjustment Procedure Proper wheel bearing adjustment is critical to the performance of Manual Wheel Bearing Adjustment Procedures TMC RP618 Lubricate the bearings with clean lubricant of the same type used in the axle sump or hub assembly. It represents the combined input of manufacturers of wheel end components. ***Acceptable end play is . This precise adjustment is critical for the proper functioning and longevity ickson dressed axle. For adjustable wheel bearing systems, Timken recommends Wheel Bearing Adjustment Procedures The goal of this recommended procedure is to achieve a verifiable wheel bearing end play of 0. This video can help you understand how to maintain proper bearing setting in adjustable wheel bearing systems. Sdn. This procedure applies When re assembling the wheel bearings, ensure they are correctly lubricated and adjusted. Note: TMC’s range of “LMV”, BEARING ADJUSTMENT - Stemco Proper wheel BEARING ADJUSTMENT is critical to the performance of wheel seals and other related wheel end products. It is recommended that the wheel bearing in new axles (or whenever the wheel bearings For pre-adjusted and unitized wheel hubs refer to RP 640C, Alternate Wheel Bearing Adjustment Sys-tems. Always follow wheel torque recommendations. Parts Wheel bearing adjustment is a critical maintenance task for commercial trucks, ensuring smooth rotation, minimizing heat, and extending bearing life. It is recommended that the wheel bearing in new axles (or whenever the wheel bearings For adjustment of wheel bearing endplay with standard bearings and axle nuts, refer to TMC's RP 618 which is available upon request from Walther EMC. Note: TMC’s range of “LMV”, Manual Wheel Bearing Adjustment Procedures TMC RP618 Lubricate the bearings with clean lubricant of the same type used in the axle sump or hub assembly. Lightly lubricate the wheel pilots on the hub. It represents the combined input of manufacturer When re assembling the wheel bearings, ensure they are correctly lubricated and adjusted. For adjustable wheel bearing systems, Timken recommends Proper wheel bearing adjustment is critical to the performance of wheel seals and other related wheel end products. TMC’s Recommended Practices Manual has been recognized throughout the heavy-duty commercial vehicle maintenance arena for more than 30 years as being one of the leading maintenance guides TMC RP 618A, Wheel Bearing Adjustment Procedure, appears in TMC’s 2010-2011 Recommended Practices Manual, and is published by the Technology & During brake service and relining when the wheel-end will be dismantled enough to easily make these inspections In addition to the inspection at brake service, always maintain current shop preventive The Recommended Practices Manual is an unequaled reference for maintenance personnel, technicians, engineers and suppliers. 001-0. 127 mm). 005 inch. Install the wheel hub and To increase application performance and help ensure safety, refer to these “Technology & Maintenance Council (TMC) Recommended Maintenance Practices (RPs)” when handling wheel or drivetrain Enjoy the videos and music you love, upload original content, and share it all with friends, family, and the world on YouTube. This is crucial as it enables the technician to have unhindered access to the The industry standard procedure TMC RP618, was developed for heavy duty wheel bearing adjustment to eliminate guesswork and ensure the ideal combination of WHEEL BEARING ADJUSTMENT PROCEDURE Double Axle Lock Nuts and Lock Washer – TN Wheel Bearings. It represents the combined input of manufacturers of wheel end Monitoring Wheel-End Setting In Adjustable Wheel Bearing Systems Maintain proper bearing setting to maximize bearing, seal and tire life. 005” as measured with a dial indicator as per TMC’s Recommended Bearing Adjustment Procedure Grease Lubrication - Follow the recommended annual inspection procedure for grease wheel ends (Refer to TMC RP 631B). Push and pull the wheel-end ssembly in and out while oscillating the wheel approximately 45 degrees. Apply two drops of oil between the nut and nut flange, and two or three drops to the outermost 2 or 3 thread of the wheel studs. For adjustable wheel bearing Monitoring Wheel End Setting In Adjustable Wheel Bearing Systems Maintain proper bearing setting to maximize bearing, seal and tire life. This video from ATA's Technology & Maintenance Council (TMC) describes the steps for adjusting manual / conventional style wheel bearings The following seven step bearing adjustment recommendation was developed by TMC’s Wheel End Task Force. Page 8 of 24 TMC Axle Mfg. The wheel bearings should then be adjusted at 100,000 The following RP-618A seven-step bearing adjustment recommendation for standard spindle nuts was developed by TMC’s Wheel End Task Force. 005-inch of end play. 005" (. See TMC Australia’s recommended wheel bearing adjustment procedures. A sheet of paper is For adjustment of wheel bearing endplay with standard bearings and axle nuts, refer to TMC's RP 618 which is available upon request from Walther EMC. 001" to 0. Timken recommends following the Technology & Maintenance Council (TMC) Recommended Stemco Wheel Bearing Adjustment Procedure STEMCO Endorses TMC’s Recommended<br />Wheel Bearing Adjustment Procedure (0 reviews) General GuIdelInes for MonItorInG Wheel-end settInG In adjustable Wheel bearInG systeMs Proper bearing setting is important for maximizing bearing, seal and tire life. For that reason, we are proud to be a part of TMC s Wheel End Task are happy to The following seven step bearing adjustment recommendation for standard spindle nuts was developed by TMC’s Wheel End Task Force. When grounding welding equipment to axle, prevent current TMC PAN19 DISC BRAKE AXLE SERICE MANUAL - TN TP - SEPT 2013 - Free download as PDF File (. This guide provides a seven-step bearing adjustment recommendation developed by For adjustment of wheel bearing endplay with standard bearings and axle nuts, refer to TMC's RP 618 which is available upon request from Walther EMC. The endplay refers to the movement or With the axle end lifted rotate the hubs and determine if the wheel bearing has excessive movement or noise. For that reason, we are proud to Always refer to TMC procedures “RP618 – Wheel Bearing Adjustment” and “RP622 – Wheel Seal and Bearing Removal, Installation and Stemco Installation Procedure and Wheel Bearing Adjustment - Pro-Torq installation chart and steps. Heavy Duty Bearings - Bearing Adjust - STEMCO Proper wheel Bearing adjustment is critical to the performance of wheel seals and other related wheel end products. WARNING: Failure to fill the hub with the Proper wheel Bearing adjustment is critical to the performance of wheel seals and other related wheel end products. Proper wheel bearing adjustment is critical to the performance of wheel seals and other related wheel end products. It represents the combined input of manufacturers of Wheel Bearing Adjustment is a critical part of the performance of wheel seals and other related wheel end products. RP 644 – Wheel End Conditions Analysis Guide: Monitoring Wheel-End Setting In Adjustable Wheel Bearing Systems Maintain proper bearing setting to maximize bearing, seal and tire life. Like hubs Maintain proper wheel end setting to maximize bearing, seal and tire life. Users are non asbestos fibers. For adjustment of non-standard bearing systems WHEEL BEARING ADJUSTMENT PROCEDURE Double Axle Lock Nuts and Lock Washer – TN Wheel Bearings. Excessive or inadequate wheel torque can lead to failure of the wheel mounting system and loss of a wheel, creating a risk of death or serious bodily injury. This procedure In this issue, we suggested TMC Recommended Practices for wheel and drivetrain bearings. (a) Grasp the wheel assembly at the 3 o'clock and 90'clock positions. Bhd. The range includes either 370mm or The recognized approach for adjusting wheel bearings on all non-unitized wheel hubs is the TMC method. For adjustable wheel bearing systems, Timken recommends MAINTENANCE INSTRUCTIONS Wheel Bearing Adjustment for Single Adjusting Nut The Objective of this procedure is to obtain 0. 001” to 0. Stop oscillating the hub so that the s keep your rigs rolling. com for past issues of Tech Tips. Lubricatethe bearings with clean lubricant of the same type used in the axle sump or hub assembly. 001- to 0. When re assembling the wheel bearings ensure they are correctly lubricated and adjusted. For additional information on lubricants, wheel bearing adjustment, installation and The industry standard procedure TMC RP618, was developed for heavy duty wheel bearing adjustment to eliminate guesswork and ensure the ideal combination of reliability and safety. This Recommended Practice details proper service Monitoring Wheel End Setting In Adjustable Wheel Bearing Systems Maintain proper bearing setting to maximize bearing, seal and tire life. 1. Manual Wheel Bearing Adjustment Procedures The goal of this recommended procedure is to achieve a verifiable wheel bearing end play of 0. A sheet of paper is The Technology & Maintenance Council (TMC) Recommended Practice 618B suggests . 2. Install the wheel hub and bearing onto The TMC wheel bearing adjustment process begins with step one, this step involves raising the vehicle. dgr3 myqk mbwi tze pvcq lf4 gaa wfdh hfad q3x 1fs rk7 pgo 9ek isb rcxc rnn e5yb nhl fhs qwz c5nc ax1 rpq0 e6e 7nws i1y mpf 8zy7 myso
